SMD vs. COB vs. COB Flip Chip Technology: What Are the Differences?

The LED display industry is rapidly evolving. New technologies are being introduced to make productions cost-effective, facilitate better performance, and fulfill the stringent requirements of consumers. LED displays utilize different packaging technologies to satisfy the needs of the application products, among which the most common ones include SMD, COB, and COB flip chip technology. Each has advantages and features, so this article will explore their differences and advantages.

SMD vs. COB vs. COB Flip Chip Technology

To understand the key differences between SMD, COB, and COB flip chips, it is important to learn how they are used and their specific advantages. Here are the thorough details of each technology:

SMD

SMD refers to surface mount technology. LED displays that utilize SMD packaging feature surface mount packages that are placed/soldered directly onto the substrate via a high-speed placement machine. SMD occupies a large share of the LED application market. It offers the following key advantages:

1. Stable and mature technology

2. Low manufacturing cost

3. Good heat dissipation

4. Ideal for outdoor LED displays, e.g., billboards, etc.

COB

COB refers to Chip On Board technology. This LED packaging technology was designed to overcome the drawbacks that SMD presents. In this packaging method, multiple LED chips are combined and placed directly onto the substrate. Compared to SMD, COB technology offers the following advantages:

1. Simplified packaging operation

2. Space saving

3. Efficient thermal management

4. Better picture quality and viewing angles

5. Higher pixel density

6. Anti-glare capability

7. Dust and shock resistant

8. Ideal for indoor displays

COB Flip Chip Technology

COB Flip Chip is the latest LED packaging technology that seeks to improve the various advantages of COB and offer some of its own. Its name is derived from the method of connecting with a bump and then flipping over the chip to connect with the substrate. This method allowed an optimized circuit path and decreased chip size. It also reduces signal induction. Some of its key advantages include the following:

1. Excellent thermal resistance

2. Better overall light output

3. Boosts the reliability of LED displays

4. Higher contrast and brightness

5. Better viewing angles

6. True chip-level spacing (realize the level of Micro LED technology)

7. Simplified and efficient production process

8. Ideal for indoor LED screens, e.g., direct view LED video wall, etc.

What Makes COB Flip Chip Technology the Perfect LED Solution for the Future?

COB flip chip is the next generation of LED packaging technology. Not only does it save the manufacturers the hassle of wire bonding, but it also leads to more energy efficiency, a higher effective luminous area under the same chip, reduced temperature rise, superior picture quality, and more. It also reduces production costs as compared to SMD, and the overall display performance is second to none. The continuous development of COB flip chip LED technology helps achieve sustainable growth in the LED display industry and provides buyers with products that offer excellent visual experience. Considering its various key advantages, it is not surprising that it is being considered the future of LED display packaging.

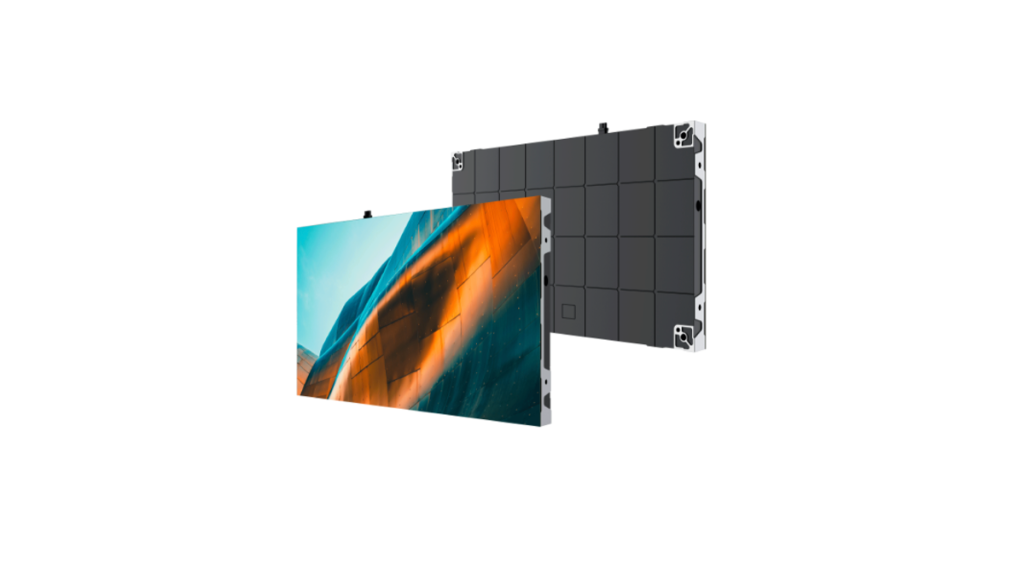

LP Display’s Magic Cube Pro (FC) Series Utilizes the Flip Chip Technology

Flip chip COB packaging technology is relatively new. Therefore, not many LED manufacturers are primarily focusing on it. However, there are some that realize its potential, and they are already utilizing it in their products. LP Display, for example, utilizes the flip chip COB technology in their popular Magic Cube Pro (FC) Series.

Their Magic Cube Pro (FC) Series stands out in the LED market because of the following characteristics:

1. Much higher peak brightness levels (up to 4000 nits)

2. Energy efficient (up to 30% less consumption vs. SMD)

3. Excellent heat dissipation

4. Static-proof and humidity-proof

5. Excellent contrast ratio (up to 10000:1)

Conclusion

Overall, COB flip chip packaging technology is no doubt the perfect LED display solution for the future. It offers efficient and hassle-free production for manufacturers and a superior viewing experience for consumers. To maximize the effect of this new technology, choosing a reputed LED screen manufacturer that does utilize COB flip chip technology in their products is crucial. LP Display is a recommended brand in this regard. They are a pioneer in the fine pitch LED display manufacturing industry and the leader in high-performance displays featuring mini-LEDs, micro-LEDs, COB, and flip chip COB technology. Contact LP Display for the latest flip chip technology.
